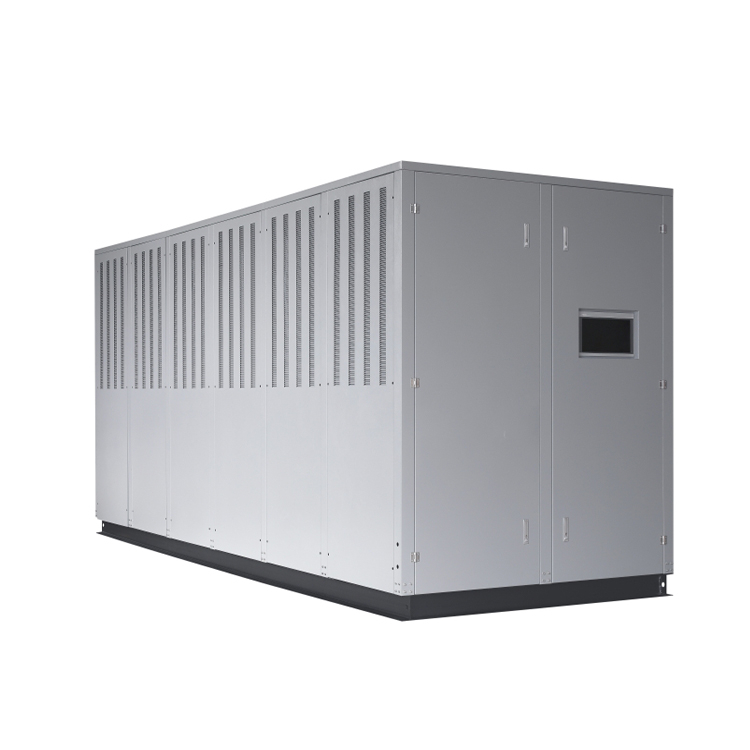

High-Temperature Steam Heat Pump
Recover Waste Heat. Produce Useful Steam. Reduce Energy Consumption.

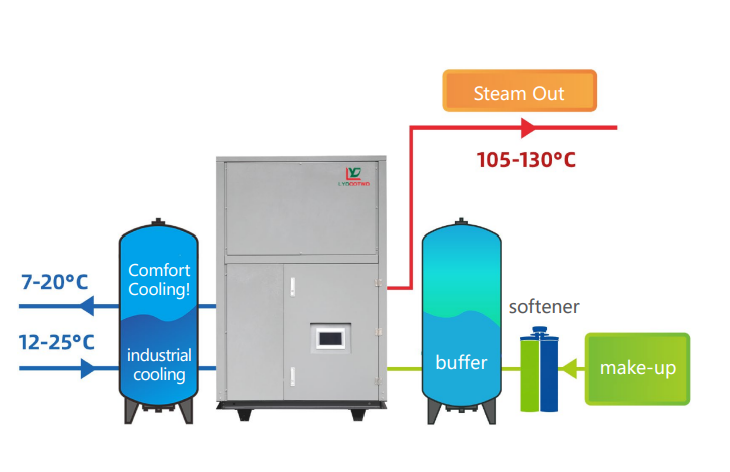

The High-Temperature Steam Heat Pump is an advanced heat recovery solution designed to capture waste heat from industrial
processing operations and convert it into useful low-pressure steam. By reusing energy that would otherwise be rejected into the atmosphere, the system helps reduce fuel consumption, lower operating costs, and decrease carbon emissions.
This technology is well suited for facilities that require a continuous supply of low-pressure steam for heating, drying, evaporation, sterilization, cleaning, and other process applications.
| Model | LYDSDG-75XQ/A | LYDSDG-150XQ/A | |||||||
| Source(℃) | water out | 95℃ | 105℃ | 115℃ | 125℃ | 95℃ | 105℃ | 115℃ | 125℃ |
| 90 | Heating（KW） | 166.00 | 156.00 | 145.50 | 135.00 | 328.68 | 308.88 | 288.09 | 267.30 |
| Input（KW） | 21.50 | 23.00 | 25.60 | 29.00 | 43.00 | 46.00 | 51.20 | 58.00 | |
| COP | 7.72 | 6.78 | 5.68 | 4.66 | 7.64 | 6.71 | 5.63 | 4.61 | |
| 80 | Heating（KW） | 129.00 | 122.00 | 115.00 | 108.00 | 255.42 | 241.56 | 227.70 | 213.84 |
| Input（KW） | 19.50 | 21.30 | 24.10 | 27.60 | 39.00 | 42.60 | 48.20 | 55.20 | |
| COP | 6.62 | 5.73 | 4.77 | 3.91 | 6.55 | 5.67 | 4.72 | 3.87 | |
| 70 | Heating（KW） | 99.40 | 95.10 | 90.90 | 86.80 | 196.81 | 188.30 | 179.98 | 171.86 |
| Input（KW） | 17.60 | 20.00 | 22.90 | 26.50 | 35.20 | 40.00 | 45.80 | 53.00 | |
| COP | 5.65 | 4.76 | 3.97 | 3.28 | 5.59 | 4.71 | 3.93 | 3.24 | |
| 60 | Heating（KW） | 76.30 | 74.10 | 72.00 | 69.80 | 151.07 | 146.72 | 142.56 | 138.20 |
| Input（KW） | 16.50 | 18.90 | 21.80 | 25.30 | 33.00 | 37.80 | 43.60 | 50.60 | |
| COP | 4.62 | 3.92 | 3.30 | 2.76 | 4.58 | 3.88 | 3.27 | 2.73 | |
| 50 | Heating（KW） | 58.50 | 57.70 | 56.80 | 56.10 | 115.83 | 114.25 | 112.46 | 111.08 |
| Input（KW） | 15.50 | 17.80 | 20.50 | 23.80 | 31.00 | 35.60 | 41.00 | 47.60 | |
| COP | 3.77 | 3.24 | 2.77 | 2.36 | 3.74 | 3.21 | 2.74 | 2.33 | |
| 40 | Heating（KW） | 44.70 | 44.50 | 44.30 | 44.20 | 88.51 | 88.11 | 87.71 | 87.52 |
| Input（KW） | 14.50 | 16.50 | 19.00 | 21.90 | 29.00 | 33.00 | 38.00 | 43.80 | |
| COP | 3.08 | 2.70 | 2.33 | 2.02 | 3.05 | 2.67 | 2.31 | 2.00 | |
| 30 | Heating（KW） | 33.70 | 33.40 | 33.20 | 33.00 | 66.73 | 66.13 | 65.74 | 65.34 |
| Input（KW） | 13.00 | 14.90 | 16.90 | 19.35 | 26.00 | 29.80 | 33.80 | 38.70 | |
| COP | 2.59 | 2.24 | 1.96 | 1.71 | 2.57 | 2.22 | 1.94 | 1.69 | |
